What Is Fusion Bonded Epoxy (FBE) Coating? Benefits for Oil & Gas Pipelines & Fittings

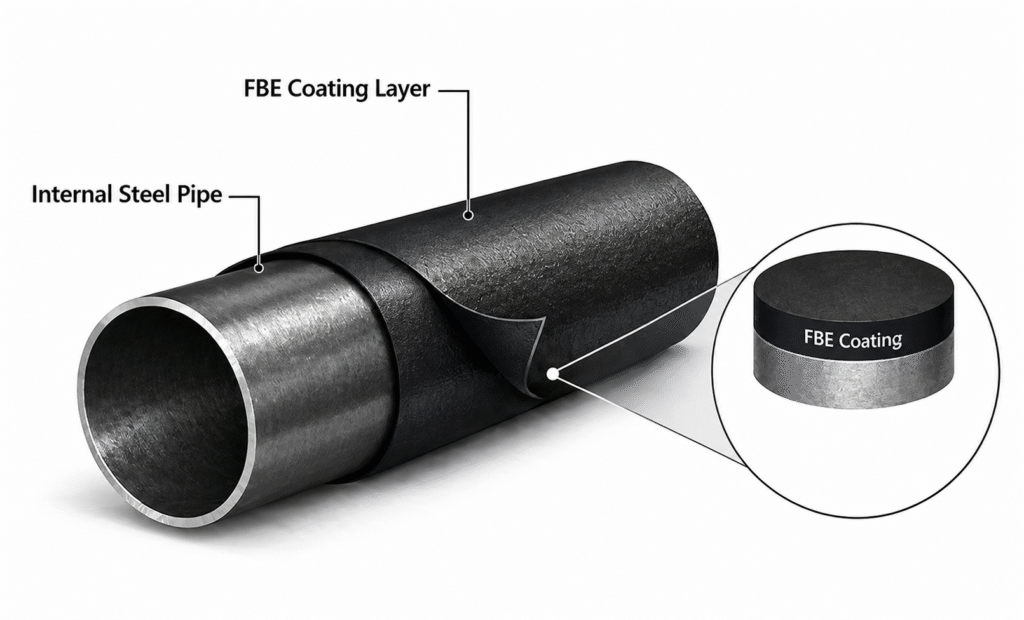

What Is Fusion Bonded Epoxy (FBE) Coating?

Fusion Bonded Epoxy (FBE) coating is a thermosetting powder coating widely used to protect steel surfaces, especially in the oil and gas industry. It is applied to pipelines, fittings, and flanges to provide excellent corrosion resistance, strong adhesion, and long-term durability.

FBE coating is created by applying epoxy powder to a preheated steel surface. The powder melts, flows, and chemically reacts to form a hard, protective layer that bonds permanently to the metal. This fusion process ensures superior protection compared to traditional liquid coatings.

How Does Fusion Bonded Epoxy Coating Work?

Step-by-Step Process

1. Surface Preparation

   • The steel surface is cleaned using abrasive blasting.

   • Removes rust, oil, and contaminants.

   • Ensures strong adhesion of FBE coating.

2. Preheating the Steel

   • Steel is heated to around 180–250°C.

   • This temperature allows proper melting of epoxy powder.

3. Electrostatic Powder Application

   • Epoxy powder is sprayed using electrostatic guns.

   • The powder adheres evenly to the hot surface.

4. Fusion & Curing

   • Powder melts and forms a uniform film.

   • Chemical cross-linking creates a durable coating.

5. Cooling & Inspection

   • Coated pipe is cooled.

   • Quality checks ensure thickness and uniformity.

Key Properties of FBE Coating

1. Excellent Corrosion Resistance

FBE coating acts as a barrier that prevents moisture, oxygen, and chemicals from reaching the steel surface. This significantly reduces the risk of corrosion in pipelines.

2. Strong Adhesion

The fusion process creates a chemical bond between the coating and steel, ensuring long-lasting performance.

3. High Impact Resistance

FBE-coated pipes can withstand mechanical stress during transportation and installation.

4. Temperature Resistance

FBE coatings can handle moderate to high temperatures, making them ideal for oil and gas operations.

5. Chemical Resistance

They resist exposure to acids, salts, and hydrocarbons commonly found in industrial environments.

Benefits of FBE Coating for Oil & Gas Pipelines

1. Long-Term Pipeline Protection

FBE coating extends the lifespan of pipelines by protecting them from corrosion and environmental damage.

2. Cost-Effective Solution

Although initial application costs may be higher, FBE coating reduces maintenance and replacement expenses over time.

3. Improved Operational Efficiency

Pipelines with FBE coating experience fewer failures, ensuring smooth oil and gas transportation.

4. Environmental Protection

By preventing leaks and corrosion, FBE coating helps reduce environmental risks and contamination.

5. Reduced Maintenance

Minimal repair and maintenance are required due to the durability of the coating.

Applications of FBE Coating

1. Oil & Gas Pipelines

FBE coating is widely used in both onshore and offshore pipelines to prevent corrosion.

2. Pipeline Fittings

Elbows, tees, reducers, and other fittings are coated with FBE to ensure uniform protection.

3. Water Pipelines

Used in potable and industrial water pipelines for corrosion resistance.

4. Flanges –

FBE coating is widely used on flanges to protect them from corrosion, especially in harsh industrial environments like oil & gas, water treatment, and chemical processing.

Types of Fusion Bonded Epoxy Coatings

1. Standard FBE Coating

• Single-layer coating

• Used for general corrosion protection

2. Dual-Layer FBE (DLFBE)

• Two layers of epoxy coating

• Provides enhanced durability and protection

3. Multi-Layer Coating Systems

• FBE used as a base layer

• Combined with polyethylene or polypropylene top layers

Advantages vs Other Coatings

FBE vs Liquid Coating

• FBE provides better adhesion

• More uniform thickness

• Longer lifespan

FBE vs 3LPE Coating

• FBE is simpler and cost-effective

• 3LPE offers additional mechanical protection

• FBE is often used as a base layer in 3LPE systems

Limitations of FBE Coating

1. UV Sensitivity

FBE coating can degrade under prolonged UV exposure unless top-coated.

 2. Limited Flexibility

Not suitable for extreme bending applications without additional layers.

3. Surface Preparation Requirement

Requires proper cleaning for effective bonding.

Why FBE Coating Is Essential in Oil & Gas Industry

The oil and gas industry operates in harsh environments where pipelines are exposed to corrosive chemicals, high pressure, and extreme conditions. Fusion Bonded Epoxy coating plays a critical role in:

• Preventing pipeline failures

• Ensing safe transportation of oil and gas

• Reducing operational risks

• Enhancing asset lifespan

Best Practices for FBE Coating

1. Proper Surface Preparation

Always ensure blasting meets industry standards.

2. Controlled Application Temperature

Maintain correct heating for proper fusion.

3. Thickness Monitoring

Uniform coating thickness ensures consistent protection.

 4. Regular Inspection

Perform quality checks for defects and adhesion.

Conclusion

Fusion Bonded Epoxy (FBE) coating is one of the most reliable and widely used solutions for protecting pipelines and fittings in the oil and gas industry. Its excellent corrosion resistance, strong adhesion, and durability make it a preferred choice for long-term pipeline protection
