One of the biggest producers of desalinated water in the world is the Gulf Cooperation Council (GCC), which includes Saudi Arabia, the United Arab Emirates (UAE), Qatar, Oman, Kuwait, and Bahrain. Desalination plants are essential to the region’s supply of drinkable water because freshwater supplies are few and residential and industrial demand is rising.
Facilities for desalination work in severely hostile environments. Seawater, concentrated brine, chlorides, high temperatures, and harsh chemicals used in water treatment are all constant exposures for pipelines, fittings, and flanges. Materials with outstanding corrosion resistance and long-term durability are required in these circumstances.
One of the most reliable stainless steel grades for desalination plant pipelines is SS 904L. It is the perfect option for vital piping systems across the GCC due to its extended service life, exceptional performance in acidic situations, and exceptional resistance to corrosion caused by chloride.
This article describes why SS 904L is the material of choice for desalination plant pipelines and how it performs dependably in harsh marine conditions.
What Is SS 904L?
SS 904L is a low-carbon, high-alloy austenitic stainless steel containing high levels of nickel, chromium, molybdenum, and copper. It was specifically developed for applications requiring superior corrosion resistance in aggressive environments.
Typical chemical composition includes:
Chromium (Cr): 19–23%
Nickel (Ni): 23–28%
Molybdenum (Mo): 4–5%
Copper (Cu): 1–2%
Carbon (C): Maximum 0.02%
Iron (Fe): Balance
The combination of these alloying elements provides excellent resistance to chloride attack, reducing acids, and localized corrosion.
Challenges in GCC Desalination Plants
Desalination facilities process millions of liters of seawater every day under demanding operating conditions.
Some of the major challenges include:
High chloride concentrations
Continuous seawater exposure
Warm marine environments
Concentrated brine
High operating pressures
Scaling and deposits
Chemical cleaning solutions
Long operating cycles with minimal shutdowns
These conditions can rapidly corrode conventional carbon steel and lower-grade stainless steels, increasing maintenance costs and reducing equipment life.
Exceptional Resistance to Chloride Corrosion
One of the biggest reasons for selecting SS 904L is its outstanding resistance to chloride-induced corrosion.
Seawater contains approximately 19,000 ppm of chloride ions, which can cause:
Pitting corrosion
Crevice corrosion
Stress corrosion cracking
The high molybdenum and nickel content of SS 904L significantly improves its ability to resist these forms of corrosion, making it highly suitable for desalination pipelines.
Superior Pitting and Crevice Corrosion Resistance
Pitting corrosion is a localized attack that creates small but deep holes in metal surfaces.
Crevice corrosion typically occurs beneath gaskets, flange joints, deposits, and stagnant areas where oxygen levels are reduced.
SS 904L provides excellent protection against both types of localized corrosion, ensuring longer service life for:
Pipe fittings
Flanges
Heat exchangers
Pumps
Valves
Process piping
This reduces the likelihood of unexpected failures and costly repairs.
Excellent Resistance to Stress Corrosion Cracking
Tensile stress and high temperatures in chloride-rich settings are common causes of stress corrosion cracking.
High-pressure desalination systems that operate constantly under harsh conditions might benefit from SS 904L’s exceptional resistance to chloride stress corrosion cracking, in contrast to many common stainless steels.
Resistance to Acidic Cleaning Chemicals
Desalination plants periodically use acidic cleaning solutions to remove scale and biological deposits from equipment.
SS 904L demonstrates excellent resistance to:
Sulfuric acid
Phosphoric acid
Organic acids
Mild reducing acids
Its copper addition enhances performance in sulfuric acid environments, making it well suited for cleaning cycles commonly used in desalination facilities.
High Mechanical Strength
Pipeline systems in desalination plants operate under significant pressure while transporting seawater and treated water.
SS 904L provides:
Good tensile strength
High ductility
Excellent toughness
Reliable performance under pressure
Its mechanical properties help ensure safe and dependable operation in both high-pressure and ambient-temperature systems.
Excellent Weldability and Fabrication
Large desalination plants require extensive fabrication and welding during construction.
SS 904L offers excellent weldability using conventional welding methods.
Benefits include:
Easy fabrication
Good formability
Reliable welded joints
Reduced risk of intergranular corrosion due to low carbon content
This simplifies installation while maintaining long-term corrosion resistance.
Long Service Life
Replacing pipelines in desalination plants is both expensive and operationally disruptive.
The outstanding corrosion resistance of SS 904L helps provide:
Extended equipment life
Lower maintenance costs
Reduced downtime
Improved plant reliability
Lower lifecycle costs
Although the initial investment is higher than standard stainless steel, the long-term savings often justify its use.

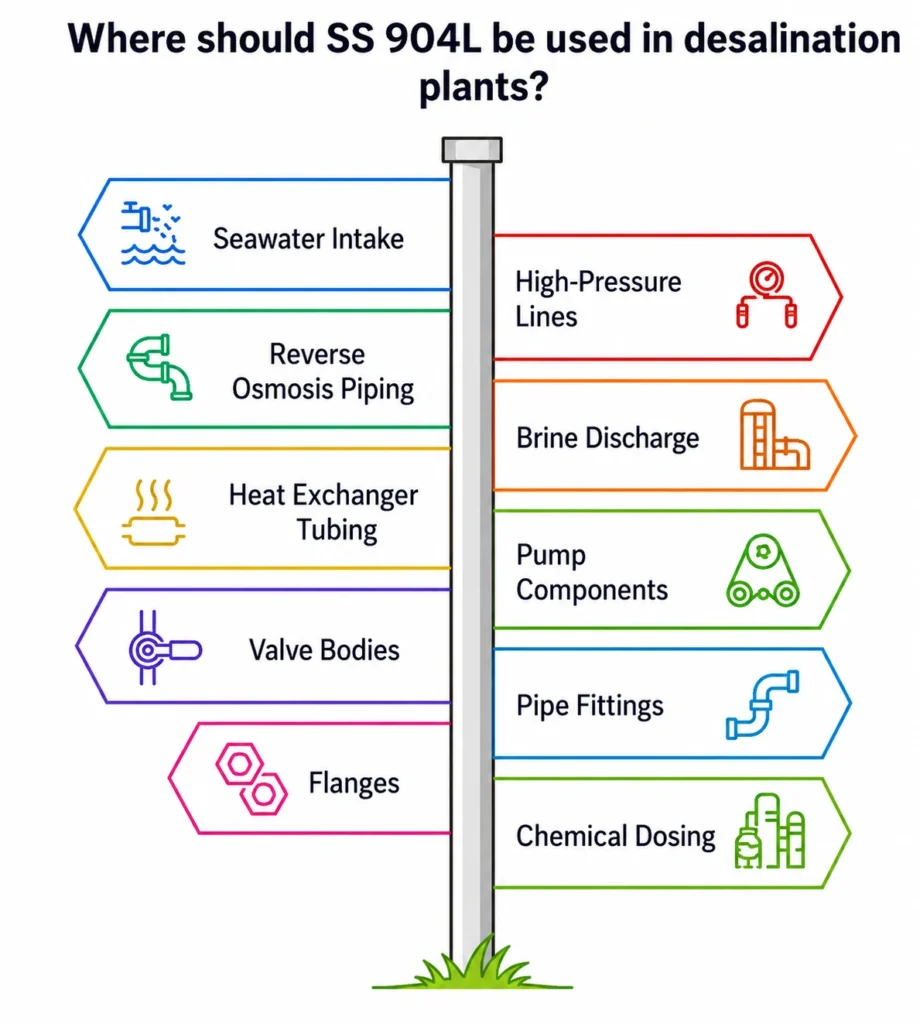

Applications of SS 904L in Desalination Plants
SS 904L is used throughout desalination facilities for critical piping systems and equipment.
Common applications include:
Seawater intake pipelines
High-pressure feed water lines
Reverse osmosis piping
Brine discharge systems
Heat exchanger tubing
Pump components
Valve bodies
Pipe fittings
Flanges
Chemical dosing systems
Its corrosion resistance makes it suitable for both thermal and membrane desalination technologies.
Comparison with Other Stainless Steel Grades
While SS 316L and SS 317L are suitable for moderately corrosive environments, SS 904L offers significantly better performance in the highly aggressive conditions found in GCC desalination plants.
Standards and Specifications
SS 904L pipe fittings and flanges are typically manufactured according to internationally recognized standards.
Common standards include:
Pipe Fittings
ASME B16.9
ASME B16.11
MSS SP-43
Flanges
ASME B16.5
ASME B16.47
EN 1092-1
Material Specifications
ASTM A403 WP904L – Butt Weld Fittings
ASTM A182 F904L – Forged Flanges and Forged Fittings
ASTM A312 TP904L – Stainless Steel Pipes
ASTM A213 TP904L – Heat Exchanger Tubes
Compliance with these standards ensures product quality, compatibility, and reliable performance.
Factors to Consider When Selecting SS 904L
Before specifying SS 904L for desalination projects, engineers should evaluate:
Chloride concentration
Operating pressure
Service temperature
Water chemistry
Cleaning chemicals
Design life requirements
Applicable project standards
Maintenance strategy
A thorough evaluation helps ensure the selected material delivers optimal long-term performance.
Benefits of Using SS 904L in GCC Desalination Plants
Using SS 904L offers several advantages for desalination facilities:
Outstanding chloride corrosion resistance
Excellent pitting and crevice corrosion resistance
Superior resistance to stress corrosion cracking
Excellent performance in acidic cleaning environments
High mechanical strength
Excellent weldability
Reduced maintenance costs
Longer service life
Improved operational reliability
Lower total lifecycle costs
These benefits make SS 904L one of the most dependable materials for critical desalination infrastructure.
Related Reports
Inconel vs Hastelloy Fittings: Which High Nickel Alloy is Right for Your Project?
What Is Fusion Bonded Epoxy (FBE) Coating? Benefits for Oil & Gas Pipelines & Fittings
What Is Inconel Used For in Oil and Gas? Grades, Properties & Applications
Types of Stainless Steel Fittings: SS 310, 904L, 317L & When to Use Them
Conclusion
Choosing materials that can survive harsh marine environments is crucial for guaranteeing long-term plant operation, as desalination remains a crucial source of freshwater throughout the GCC. Because of its remarkable resistance to stress corrosion cracking, pitting, crevice corrosion, and corrosion caused by chloride, SS 904L has proven to be one of the most dependable stainless steel grades for desalination plant pipelines.
It is a perfect option for seawater intake systems, reverse osmosis units, brine pipelines, and other crucial process equipment due to its exceptional weldability, durability, and compatibility with chemical and seawater cleaning procedures. SS 904L is the ideal material for desalination projects throughout the Gulf Cooperation Council (GCC) because of its longer service life and lower maintenance requirements, despite its higher initial cost compared to normal stainless steel grades.
