Pipeline systems are subjected to some of the most extreme working conditions on Earth as the offshore oil and gas sector continues to grow into deeper waters. Extreme hydrostatic pressure, extremely corrosive seawater, temperature fluctuations, and aggressive production fluids containing carbon dioxide (CO₂), hydrogen sulfide (H2S), and chlorides must all be tolerated by subsea and deepwater pipelines. Conventional carbon steel and normal stainless steel frequently need considerable corrosion protection under these harsh conditions or may fail too soon.
Super Duplex Stainless Steel S32750, a high-performance alloy known for its remarkable blend of strength, corrosion resistance, and durability, is being used by engineers more and more to address these issues. This material, also referred to as UNS S32750, is now the material of choice for deepwater production systems, offshore platforms, manifolds, and subsea pipelines.
The performance of Super Duplex Steel S32750 in subsea and deepwater pipeline applications is examined in this article, along with the reasons it continues to be one of the most reliable materials for offshore infrastructure.
What Is Super Duplex Steel S32750?
Super Duplex Stainless Steel S32750 is a high-alloy stainless steel with a balanced microstructure consisting of approximately 50% austenite and 50% ferrite. This dual-phase structure combines the excellent corrosion resistance of austenitic stainless steels with the high strength of ferritic grades.
Its typical chemical composition includes:
Chromium: 24–26%
Nickel: 6–8%
Molybdenum: 3–5%
Nitrogen: 0.24–0.32%
Iron: Balance
The high chromium, molybdenum, and nitrogen content significantly enhances resistance to pitting, crevice corrosion, and chloride stress corrosion cracking, making S32750 ideal for offshore and subsea service.
Challenges in Subsea and Deepwater Pipeline Applications
Pipelines installed beneath the ocean surface operate under conditions that are far more demanding than those encountered onshore.
Some of the key challenges include:
High hydrostatic pressure
Continuous seawater exposure
Chloride-rich environments
Sour service conditions containing H₂S
CO₂ corrosion
Mechanical fatigue due to wave and current loading
Deepwater temperature variations
Limited accessibility for maintenance and repairs
These conditions require materials capable of delivering reliable performance over decades with minimal maintenance.
Superior Corrosion Resistance
One of the primary reasons for selecting Super Duplex Steel S32750 is its exceptional resistance to corrosion.
Resistance to Seawater Corrosion
Seawater contains high concentrations of chlorides, which can rapidly attack many stainless steels.
S32750 provides excellent resistance to:
General corrosion
Pitting corrosion
Crevice corrosion
Chloride stress corrosion cracking
Its high Pitting Resistance Equivalent Number (PREN), typically above 40, makes it highly suitable for continuous seawater exposure.
Performance in Sour Service
Hydrogen sulfide (H2S) is present in many offshore reservoirs, resulting in extremely corrosive sour service conditions.
Super Duplex S32750 is frequently utilized in production systems that handle sour hydrocarbons and provides outstanding resistance to sulfide stress cracking.
It operates consistently in compliance with NACE specifications for sour service applications when produced and heat-treated in accordance with industry norms.
Resistance to CO₂ Corrosion
Carbon dioxide can cause severe internal corrosion in pipelines transporting produced fluids.
S32750 provides excellent resistance to CO₂-induced corrosion, making it suitable for oil and gas production pipelines where carbon dioxide is present.
High Mechanical Strength
Deepwater pipelines must withstand significant external pressure and internal operating loads.
One of the greatest advantages of S32750 is its high mechanical strength.
Compared with conventional austenitic stainless steels, Super Duplex S32750 offers:
Approximately twice the yield strength
High tensile strength
Excellent impact toughness
Superior fatigue resistance
This higher strength enables engineers to reduce wall thickness while maintaining structural integrity, resulting in lower material weight and easier installation.
Excellent Resistance to Stress Corrosion Cracking
In offshore conditions, stress corrosion cracking is a serious problem, particularly when tensile strains and chlorides combine.
S32750 exhibits exceptional resistance to stress corrosion cracking caused by chloride, in contrast to many traditional stainless steels.
This considerably lowers the possibility of unforeseen malfunctions during extended offshore duty.
Outstanding Fatigue Performance
Subsea pipelines are constantly subjected to cyclic loading caused by:
Ocean currents
Wave action
Pressure fluctuations
Thermal expansion and contraction
These repeated stresses can lead to fatigue failure over time.
Super Duplex Steel S32750 provides excellent fatigue strength, making it highly reliable for dynamic offshore applications.
Weldability and Fabrication
Modern offshore projects require extensive field welding during pipeline fabrication and installation.
S32750 offers good weldability when proper welding procedures are followed.
Successful fabrication depends on:
Qualified welding procedures
Controlled heat input
Appropriate filler materials
Proper post-weld inspection
Maintaining the correct ferrite-austenite balance is essential to preserve the alloy’s corrosion resistance and mechanical properties.

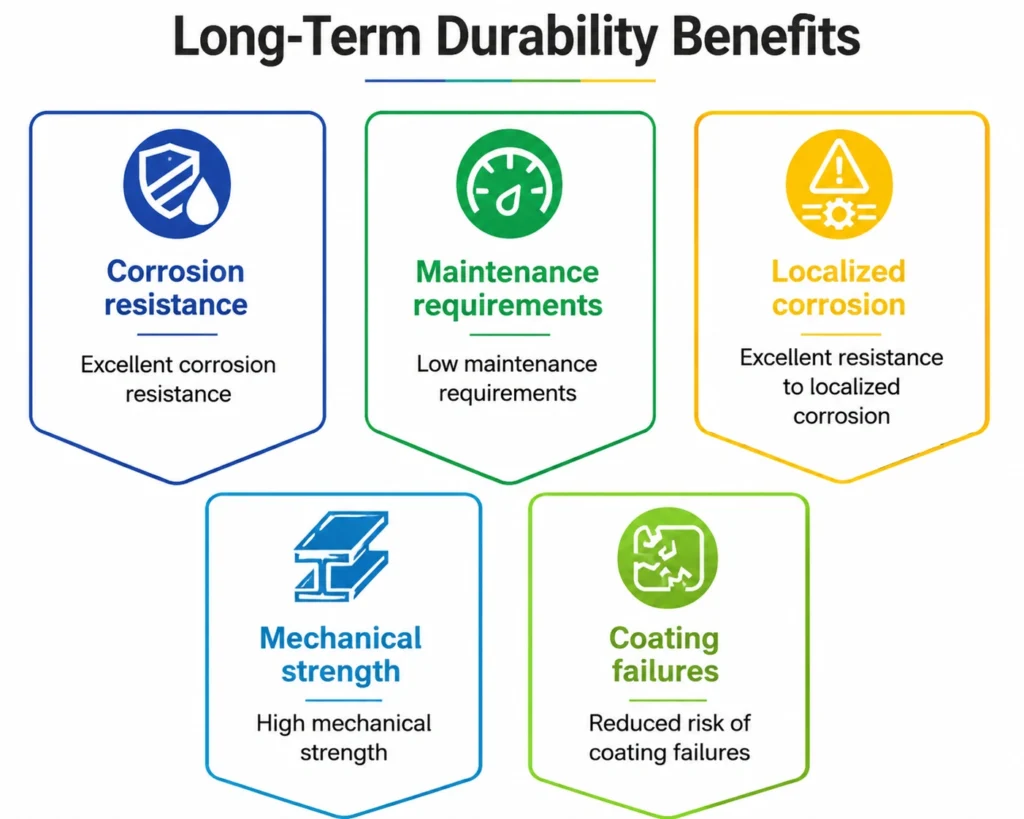

Long-Term Durability
Offshore infrastructure is expected to operate for decades with minimal maintenance.
Super Duplex Steel S32750 contributes to long service life through:
Excellent corrosion resistance
High mechanical strength
Low maintenance requirements
Reduced risk of coating failures
Excellent resistance to localized corrosion
Its durability helps reduce lifecycle costs and improves the overall reliability of subsea production systems.
Applications in Subsea and Deepwater Projects
Super Duplex Steel S32750 is widely used throughout offshore production facilities and subsea infrastructure.
Typical applications include:
Subsea Pipelines
Used for transporting:
Crude oil
Natural gas
Produced water
Injection water
Its corrosion resistance ensures long-term reliability in seawater environments.
Flowlines and Risers
Flowlines connect subsea wells to production facilities, while risers transport fluids between the seabed and offshore platforms.
S32750 provides the strength and corrosion resistance required for these demanding applications.
Subsea Manifolds
Manifolds distribute production fluids from multiple wells.
The alloy’s resistance to chlorides and sour service conditions makes it ideal for subsea manifold systems.
Offshore Platforms
S32750 is commonly used in:
Firewater systems
Seawater cooling systems
Utility piping
Chemical injection systems
Process piping
Its excellent seawater resistance minimizes maintenance requirements.
Desalination and Water Injection Systems
Offshore facilities require seawater for cooling and reservoir pressure maintenance.
S32750 is widely used in seawater intake, filtration, and injection systems because of its superior corrosion resistance.
Advantages Over Conventional Materials
Compared with carbon steel and standard stainless steels, Super Duplex Steel S32750 offers several advantages:
Superior resistance to seawater corrosion
Higher mechanical strength
Better resistance to chloride stress corrosion cracking
Improved fatigue performance
Lower maintenance costs
Longer service life
Reduced wall thickness due to higher strength
Excellent resistance to sour service environments
Although the initial material cost is higher, the reduced maintenance and extended operational life often make S32750 the more economical choice over the entire lifecycle of the pipeline.
Selection Considerations
When specifying Super Duplex Steel S32750 for subsea applications, engineers should evaluate:
Operating pressure
Service temperature
Chloride concentration
Presence of H₂S and CO₂
Water depth
Required mechanical strength
Applicable industry standards such as ASTM, ASME, NACE, and ISO
Proper material selection, fabrication, and quality control are essential to achieving long-term performance.
Related Reports
Inconel vs Hastelloy Fittings: Which High Nickel Alloy is Right for Your Project?
What Is Fusion Bonded Epoxy (FBE) Coating? Benefits for Oil & Gas Pipelines & Fittings
What Is Inconel Used For in Oil and Gas? Grades, Properties & Applications
Types of Stainless Steel Fittings: SS 310, 904L, 317L & When to Use Them
Conclusion
Super Duplex Stainless Steel S32750’s exceptional strength, corrosion resistance, and long-term durability have made it one of the top materials for subsea and deepwater pipeline applications. It is a popular option for offshore oil and gas projects all over the world due to its resistance to high mechanical loads, sour service conditions, chloride attack, and exposure to seawater.
S32750 offers outstanding dependability and lower lifecycle costs when utilized in subsea pipes, flowlines, risers, manifolds, or seawater injection systems. Super Duplex Steel S32750 will continue to be a vital component for guaranteeing the endurance, effectiveness, and safety of contemporary subsea infrastructure as offshore development advances into deeper and more difficult conditions.
